Premium HDMI Cable with Ultra Lock System!
The PureLink ULS1000 HDMI cable from the Ultimate series ensures lasting HDMI connections with its unique, patented Ultra Lock System. The high-purity, triple-shielded OFC copper conductor and 24-karat gold-plated contacts with the 360° locking system deliver top connection quality. Includes audio return channel and an Ethernet line (HEAC).
The High Speed HDMI cables of the Ultimate series meet all requirements of the latest HDMI 2.0 standard. The patented Ultra Lock System provides durable, uninterrupted HDMI connections thanks to its unique 360° safety lock. Cable lengths from 0.5 to 7.5 meters offer full 18 Gbps bandwidth (10.2 Gbps at 10m). To avoid signal loss and errors over longer transmission distances, cables from 5m are equipped with a signal amplifier on the display side. The special APO technology ensures consistently sharp images and crystal-clear sound.
The HDMI-certified cables and adapters of the Ultimate series comply with the new HDMI 2.0 High Speed with Ethernet standard. They support resolutions up to 4K (4096x2160) over distances up to 7.5m and are backward compatible with all previous HDMI specifications.
Patented Ultra Lock System

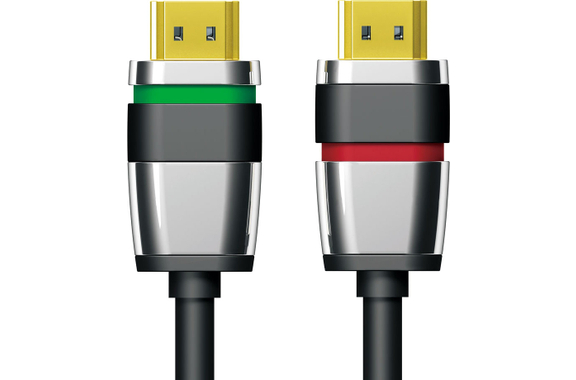

The ULS technology ensures mechanically secure connections by locking the HDMI plug into the socket. The innovative 360° safety lock is currently the most secure system on the market and guarantees permanently uninterrupted connections. It is universally compatible with any HDMI socket and can be switched between "locked" and "unlocked" positions with a single hand movement.
The high-purity OFC copper conductor is protected by an RF-tight triple shielding against interference and ensures the highest transmission quality. 24-karat gold-plated precision contacts guarantee optimal signal transmission and permanently reliable functionality.
HDMI Ethernet Channel and Audio Return Channel
The Ethernet channel (HEAC) in the HDMI cable allows IP-based entertainment devices such as TVs, set-top boxes, or game consoles to be integrated into the home network without additional wiring for internet or IP-based services. The audio return channel (ARC) sends the digital audio signal back to the AV receiver via the HDMI cable, replacing a Toslink cable.
A ten-step manufacturing inspection, quality control by the in-house test lab, and inspection of each item before shipping guarantee 100% performance.
PureLink - Install. Connect. Perform.
Features

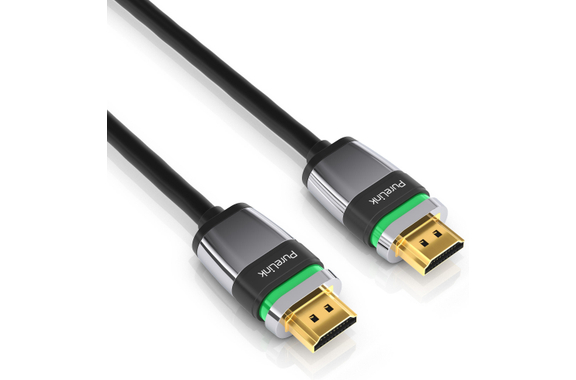

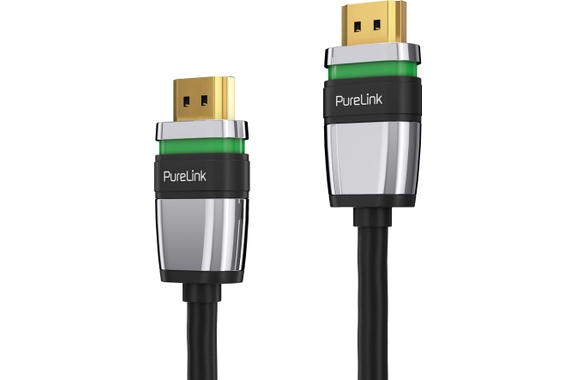

- PureLink Certified 4K Locking HDMI Cable
- Type: ULS1000-020
- HDMI Version 2.0 – 18Gbps for resolutions up to 4K UltraHD 60Hz
- Gold-plated precision contacts with PureLink ULS™ (Ultra-Lock System™)
- HDMI-A Plug to HDMI-A Plug
- High-purity OFC copper conductor and triple shielding, AWG30
- Patented wave soldering and locking technology
- Round cable
- Length: 2m
- Inner conductor: High-purity OFC copper
- Number of shields: 3
- Shield 1: Aluminum foil (100% coverage)
- Shield 3: Braid (100% coverage)
- Outer jacket diameter: 6.0 mm
- Outer jacket: Highly flexible PVC
Signal Transmission
- Supported standards: High Speed HDMI with Ethernet, ULS
- Transmission types: Digital audio and video signals
- Supported color spaces: 16/24 bit RGB/YUV, Deep Color, x.v.Color™
- Supported audio standards: Audio Return Channel (ARC), Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, DVD Audio, SA-CD
- Max resolution: 4K/UHD/2160p@60Hz
- Other standards: HDMI Ethernet Channel (HEC), 3D, HDCP, CEC, 4K2K (2160i/p), FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p)
Scope of delivery
- 1 x PureLink Certified 4K Locking HDMI Cable 2 m
Specification
- Product number 00105474
- Colour Schwarz
- Plug 2 HDMI
- Plug 1 HDMI
- Length (meters) 2
