Light Effects with Music and DMX Control!
The Showlite LED Stage Bars are perfect for decorative lighting of walls and ceilings as well as larger stages. Each of the 216 powerful LEDs (R: 72, G: 72, B: 72) is comparably as bright as a conventional 200 watt halogen bulb and allow – especially when using multiple bars – atmospheric light design.
The stage bars can be programmed both via DMX and on the back for standalone operation. Of course, the bars can also be triggered via the built-in microphone, whose sensitivity can be adjusted. This way, great color changes and strobe effects can be realized with very little effort.
Absolutely Silent
The special housing design dissipates heat perfectly even without a fan. Therefore, the LED stage bar operates without any audible noise.
Additionally, individual LED segments can be controlled separately via DMX (matrix effect). In 26 channel mode 8 LED segments (3x 9 LEDs) can mix their own color, making it possible with suitable controllers to display videos or visuals across multiple stage bars.
Overview of the Different DMX Modes:
- 3 channel mode: 1 block (segment 1-8), RGB
- 5 channel mode: 1 block (segment 1-8), RGB + Function + Speed*
- 8 channel mode: 2 blocks (segment 1-4/5-8), RGB + Function + Speed*
- 14 channel mode: 4 blocks (segment 1-2/3-4/5-6/7-8), RGB + Function + Speed*
- 24 channel mode: all 8 segments RGB controllable
- 26 channel mode: all 8 segments RGB controllable + Function + Speed*
*Function and Speed affect all segments globally.
The scope of delivery includes two screw-on feet for floor placement.
Features

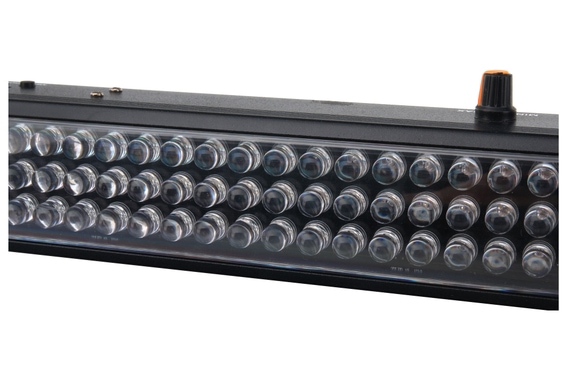

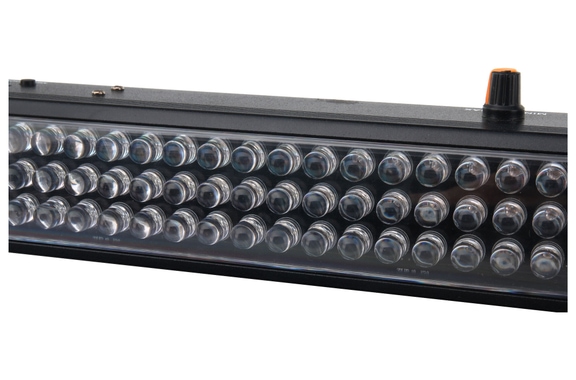

- Each with 216 RGB LEDs at 10 mm (R: 72, G: 72, B: 72)
- 8 segments with 3x 9 LEDs per color
- Up to 100,000 operating hours
- 3 operating modes: DMX-512, Master/Slave, Sound to Light
- 6 DMX modes: 3, 5, 8, 14, 24, and 26 channel mode
- In 26 channel mode, a separate color mix can be created for each segment
- Electronic dimming: 0-100%
- Auto mode with preprogrammed color scenes and chasers
- Strobe effect: 0-20Hz
- Adjustable speed
- Built-in microphone with sensitivity control

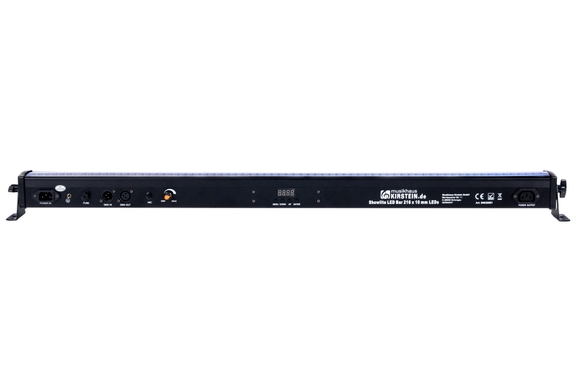

- LED display and 4 buttons for configuration

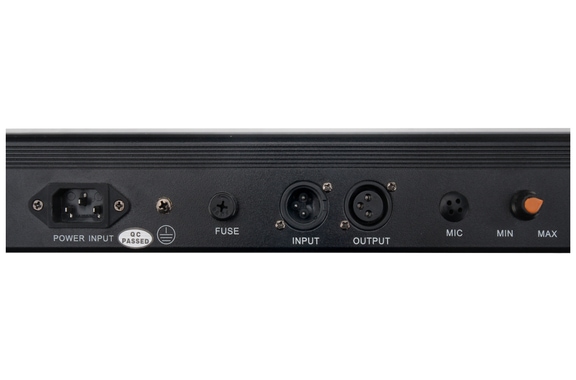

- DMX In/Out XLR 3-pin
- Beam angle: 25°
- Power consumption: 25 watts
- Power supply: 90 - 240 V/50 - 60 Hz
- Operating temperature: -20°C - 40°C
- Robust aluminum housing
- IEC outlet for daisy-chaining to additional bars
- Includes safety eyelet
- Dimensions housing only (WxHxD): 975 x 67 x 63 mm
- Weight with feet: 2.2 kg each
Scope of delivery

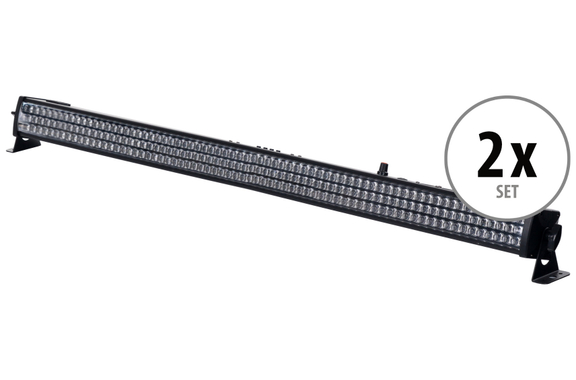

- 2 x Showlite LED Stage Bar
- 2 x screw-on feet
- 2 x power cables
Suitable accessories (Not included in the delivery.)
Specification
- Product number 00086957
- Light source power (Watts) 25
- Savings offer Multi-set
- Colour Black
