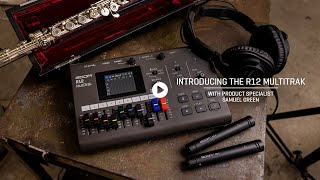

Zoom R12 MultiTrak - For Musicians Who Live to Make Music!
The Zoom R12 was designed for musicians who live to create music and want the freedom to make music wherever they are. Thanks to its compact and portable design, you can record, edit, and mix songs without a computer. The R12’s full-color LCD touchscreen lets you easily cut, copy, loop, and edit tracks.
With 4 AA batteries, the Zoom R12 runs for up to 5 hours—so you can take your production anywhere. Alternatively, you can power the R12 with the optional AD-17 power adapter or a USB battery pack.
Impressive Sound
The Zoom R12 features ultra-clean preamps you’ll love. With two XLR/TRS inputs and eight audio tracks, the R12 is perfect for recording demos up to release-ready songs.
The R12 offers a send effect channel for reverb, chorus, and delay with its own effect return fader. For advanced sounds, presets and effects from Zoom Guitar Lab are available. Additionally, each R12 channel has pan and a 3-band EQ, with channels 1 and 2 also featuring a compressor.
Playback and Play Along
Use Sequence Play to create a playlist of your projects. Then use them as backing tracks whether you want to perform live or rehearse a set.
Add extra audio samples by importing files via microSD card or USB flash drive into your R12.
It All Starts with a Groove
With 150 built-in drum loops covering various patterns and genres, the R12 offers a versatile rhythm section for every project. Activate the fully configurable click track at the press of a button. In the “Click Balance” section, you can blend the metronome with audio playback and route it to your headphones and/or main outputs.
Plenty of Connections!
Connect microphones, instruments, or line devices like keyboards, mixers, and more. Input 1 on the R12 has a Hi-Z switch for direct guitar connection to the recorder. Both R12 inputs can supply 48 V phantom power for condenser microphones. The R12 features a stereo mini-jack for headphones plus separate 6.3 mm monitor outputs.
Interface & User Interface
Use the R12 as a stereo audio interface via USB-C for your favorite DAW or streaming platform. When used as a control surface, you can easily operate your software during production via transport controls and faders.
Built-In Synth Sounds
The R12 includes 18 FM synth instruments that you can play via a USB-C connected MIDI keyboard or program via the touchscreen.
Musical Freedom - Battery Powered!
Features
- Zoom Multi Track Recorder
- Type: R12 MultiTrak
- Multitrack digital recorder with up to 8 recording tracks
- 2.4" LCD color touchscreen, user-friendly interface
- Power Supply
Batteries: Up to 5 hours runtime with 4 AA batteries
Power adapter: ZOOM AD-17 (5V/1.0A) - 2 XLR/TRS combo inputs, phantom power & Hi-Z on input 1
- Send effect channel for reverb, chorus & delay with dedicated effect return fader
- Built-in USB-C audio interface (2-In/2-Out or 2-In/4-Out)
- Dimensions (W x D x H): 256 x 158 x 61 mm
- Weight: 827 g (incl. batteries)
Inputs
- Connections: 2 x XLR/TRS combo jacks (balanced, XLR: phase = pin 2 / TRS: phase = tip)
- Input gain: +6 ~ +50 dB
- Input impedance: XLR 3.9 kOhm TRS: 3.9 kOhm/1 MOhm (Hi-Z active only for INPUT 1)
- Phantom power: +48 V (switchable separately for INPUTS 1 and 2)
- Equivalent input noise: -121 dBu or less (IHF-A) at +50 dB/150 Ohm input
- Frequency response: -1.0/+0.5 dB: 20 Hz - 20 kHz
Outputs
- Master Out
- Connections: 2 TRS jack sockets (balanced)
- Maximum output level:+14 dBu
- Output impedance: 200 Ohm
- Phones
- Connection: 1 x 3.5 mm stereo jack socket
- Maximum output level: 45 mW + 45 mW (at 32 Ohm load)
- Output impedance: 10 Ohm
Recorder
- Max. number of simultaneous recording tracks: 2
- Max. number of simultaneous playback tracks: 8
- Recording format: 44.1 kHz, 16/24-bit, mono/stereo WAV
- Recording media
SDHC-compatible memory cards from 4 to 32 GB
SDXC-compatible memory cards from 64 GB to 1 TB
Track Settings
- EQ
High: 10 kHz, ±12 dB, shelving
Middle: 2.5 kHz, ±12 dB, peaking
Low: 100 Hz, ±12 dB, shelving - Pan: L100 - R100
Effects
- Input dynamics effects: Comp/Limiter/Gate
- Maximum number of simultaneous effects
3 types can be used simultaneously
50 patch memory slots
Guitar Lab supported
Can be used as insert effect on input or send effect - Dedicated send effects: 10 different spatial effects
Tuner / Metronome
- Chromatic/Guitar/Bass/Open A/Open D/Open E/Open G/DADGAD
- Time signatures: 3/4, 4/4, 6/8
- Tempo range: 40.0 - 250.0 BPM
Rhythm Loops
- Sound generation: PCM
- Number of loops: 150
Synth
- Sound generation: FM
- Polyphony: 8
- Number of sound types: 18 (+1 PCM drum kit)
Scope of delivery
- 1 x Zoom R12 MultiTrak
- 1 x Zoom AD-17 AC adapter
- 1 x USB cable
Specification
- Product number 00090574
- Colour Black
