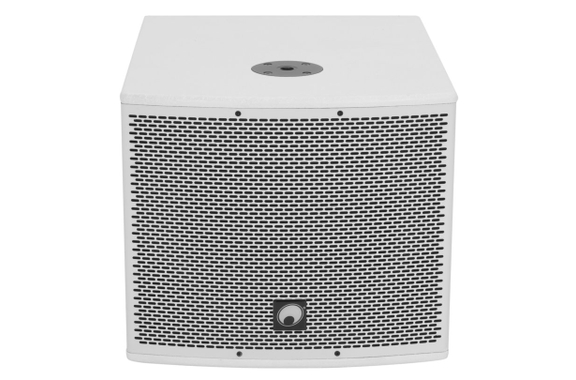

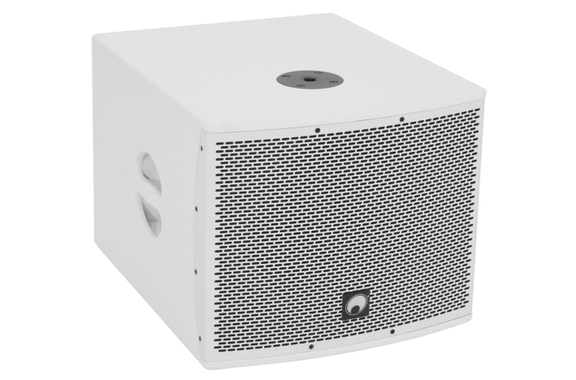

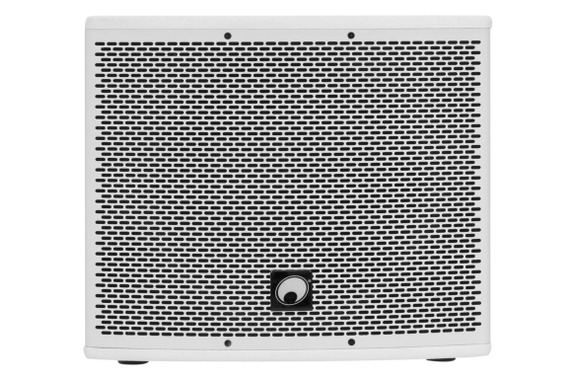

Omnitronic MOLLY-12A Subwoofer White

• 12" bass reflex subwoofer with DSP and 700 watts RMS power
• Flexibly expandable with MOLLY-6 satellites for 2.1 and 4.1 operation
• DSP-controlled Class-D amplifier (500 W + 2 x 100 W)
• Integrated Bluetooth audio streaming for wireless music enjoyment
• 4 EQ presets with status indicators
• Signal limiter and crossover
• Signal inputs via combo jacks (XLR/Jack), RCA and 3.5 mm mini jack
• XLR outputs for linking additional MOLLY systems or active speakers
• Volume adjustable separately for subwoofer and satellite L/R
• Stereo-mono switch
• Phase reversal switch
• Fault, limit, signal, and power indicators
• Integrated protection circuits: soft start, short circuit, limiter, overvoltage, overheating
• M20 metal flange for mounting the satellites
• Multiplex housing with durable textured paint and metal grille
• Built-in carrying handles and lightweight design for easy transport
• Includes 2 speaker cables
• For mobile live and DJ applications and installation in bars, shops, conference rooms, and home cinemas
• Digital signal processor
• Controllable via Bluetooth

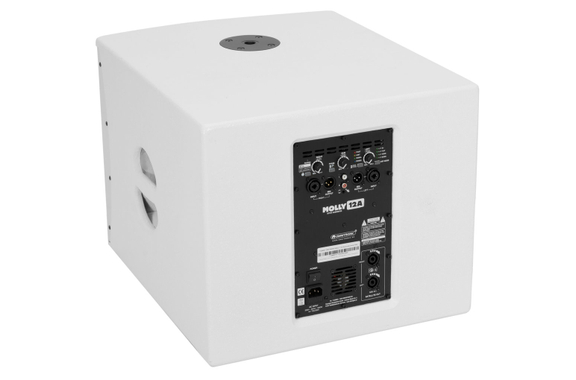

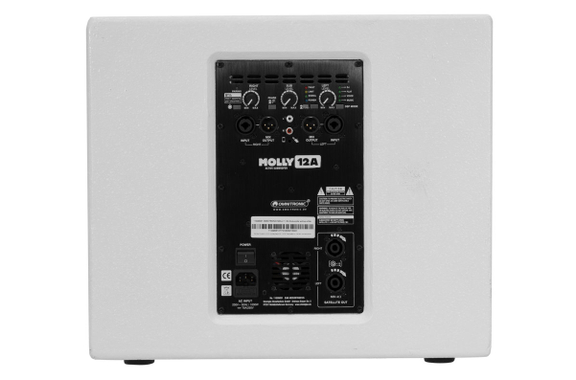

Connections

• Input: 2 x line via 3-pin XLR/6.35 mm jack (W) combo jack built-in version
• Input: 1 x line via 3.5 mm jack (stereo) built-in version
• Input: 1 x line via stereo RCA
• Output: 2 x line via 3-pin XLR
• Output: 2 x top unit via speaker built-in jack (w)

Technical Data

• Power supply: 230 V AC, 50 Hz
• Total power consumption: 1000 W
• Output power: 1 x 500 W RMS
• 2 x 100 W RMS (8 ohms)
• 2 x 200 W RMS (4 ohms)
• Speaker: 1 x woofer (12") approx. 30 cm
• Woofer voice coil (3") approx. 8 cm
• Frequency range: 40 - 160 Hz
• Sensitivity: 103 dB
• Max. sound pressure: 128 dB
• DSP: digital signal processor
• Control: Bluetooth
• Mounting system: M20 thread
• Circuit: Class D
• Dimensions (W x D x H): 47 x 57 x 40 cm
• Weight: 22.10 kg

• 1 x Omnitronic MOLLY-12A Subwoofer
