Perfect Control for Color-Rich LED Lighting - 4-Channel DMX Controller!
Whether you’re in clubs, dance studios, restaurants or retail installations, the 4-channel LED controller with DMX interface gives you a reliable, flexible solution to control your RGBW LEDs. Built for professional use, it delivers easy installation, high durability and versatile operation. You get precise control over color mixing, brightness and effects — exactly how you want them!
Features
Highlights
- 4 separately controllable channels for RGBW LEDs (12-24 V)
- DMX512-compatible - ideal for professional lighting installations
- Robust metal housing with screw-clamp terminals for a secure connection
- Silent operation - perfect for noise-sensitive environments
- Built-in show programs & stand-alone operation

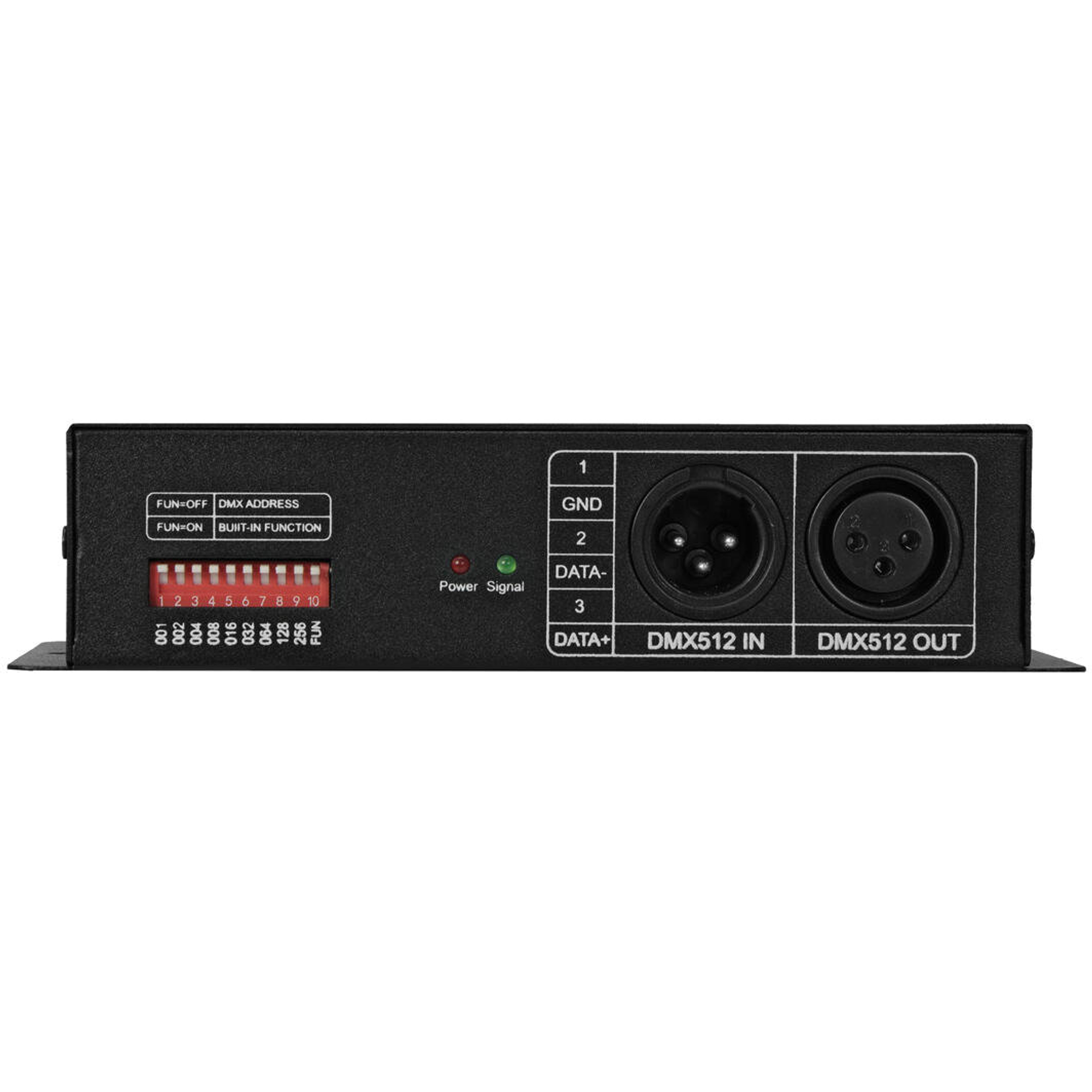

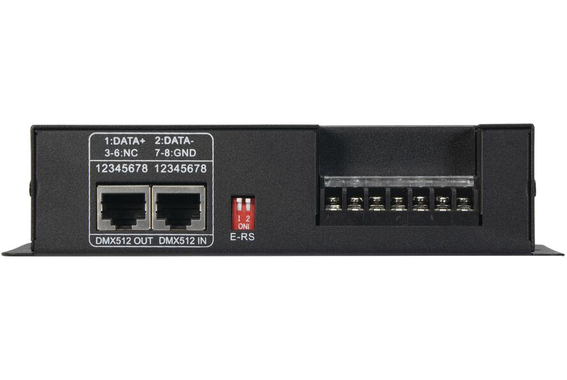

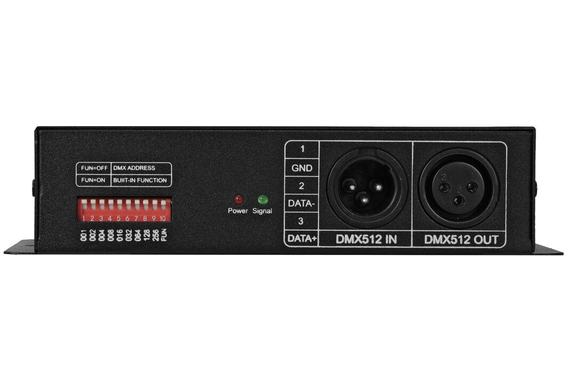

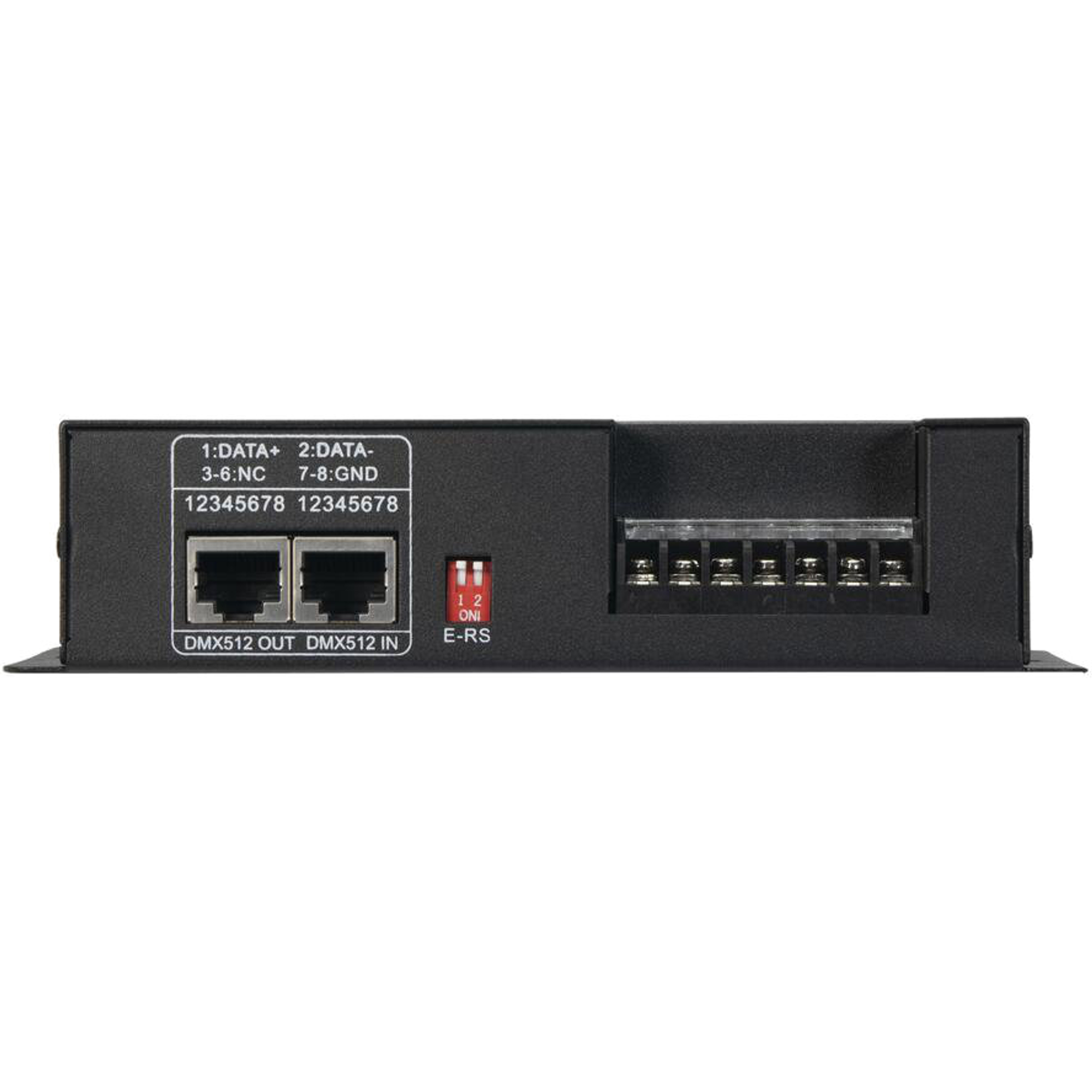

- RJ45 and XLR connectors for flexible DMX networking
- Switchable termination resistor for stable signal transmission
- Converts standard DMX512 signals into PWM signals, e.g. for LED strips
- Suitable for application areas such as: clubs/dance schools; trade show and shopfitting; installations; restaurants, bars and hotels
Technical Data
- Power supply: 12/24 V DC
- Max. total power:
- - 384 W at 12 V DC
- - 768 W at 24 V DC
- Max. power per channel:
- - 96 W at 12 V DC
- - 192 W at 24 V DC
- Output current: max. 4 x 8 A
- Power connections: screw terminals
- DMX Channels: 4
- DMX Inputs:
- - 3-pin XLR (male)
- - 1 x RJ-45 (female)
- DMX Outputs:
- - 3-pin XLR (female)
- - RJ-45 (female)
- Control: Stand-alone & DMX
- Dimensions: 16.4 x 6.6 x 3.8 cm
- Weight: 0.30 kg
- Housing: black metal
Scope of delivery

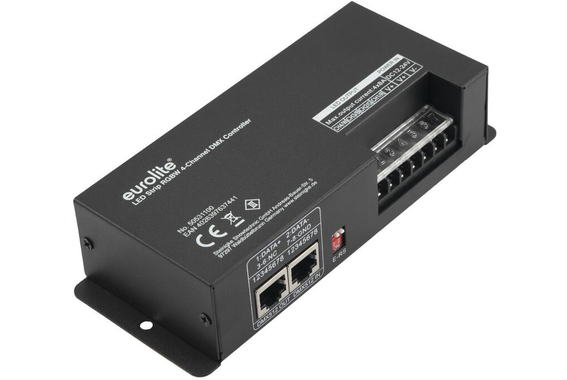

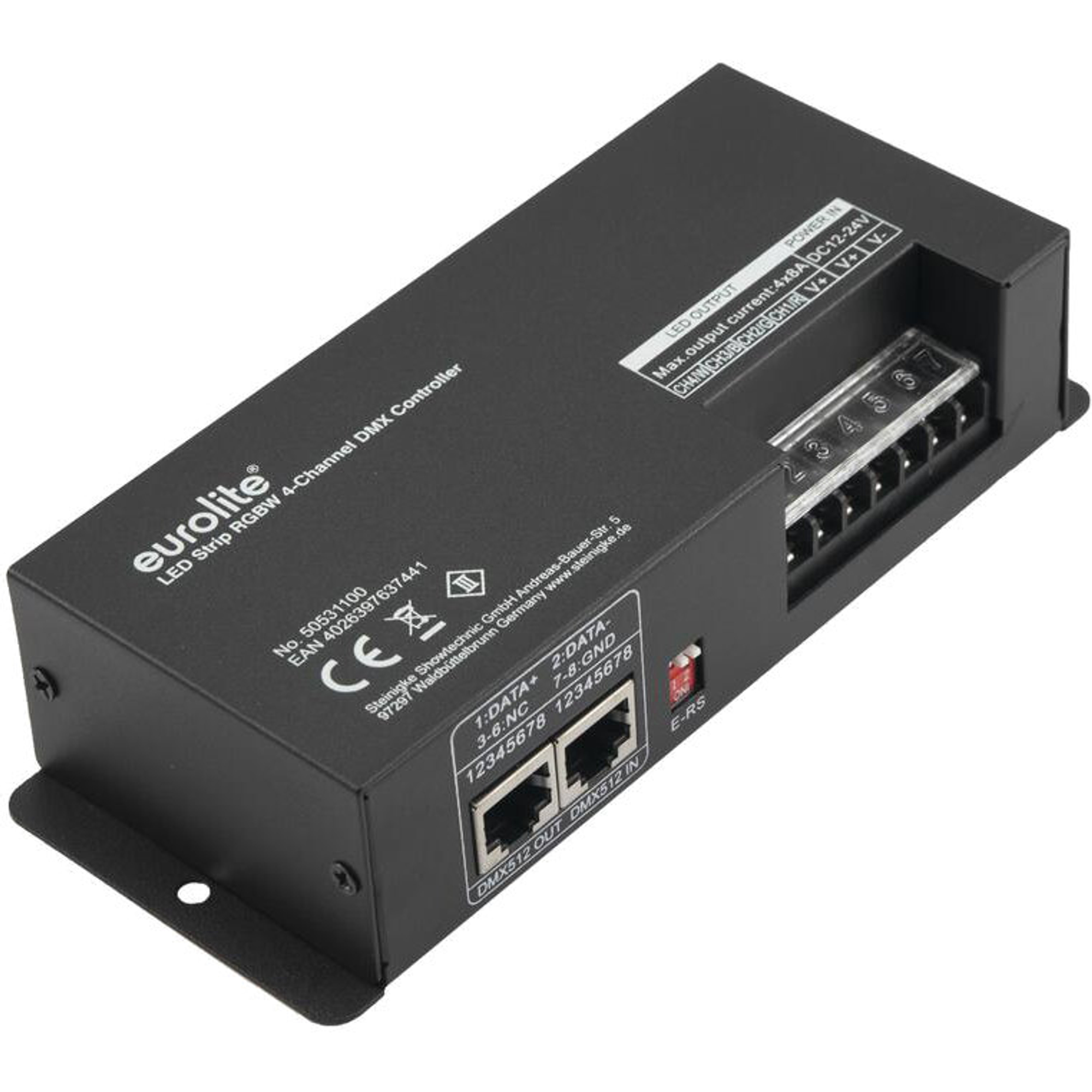

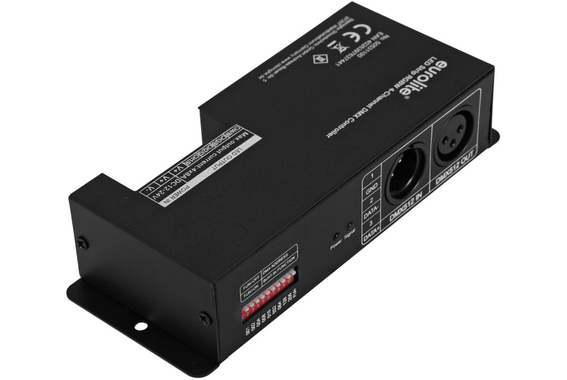

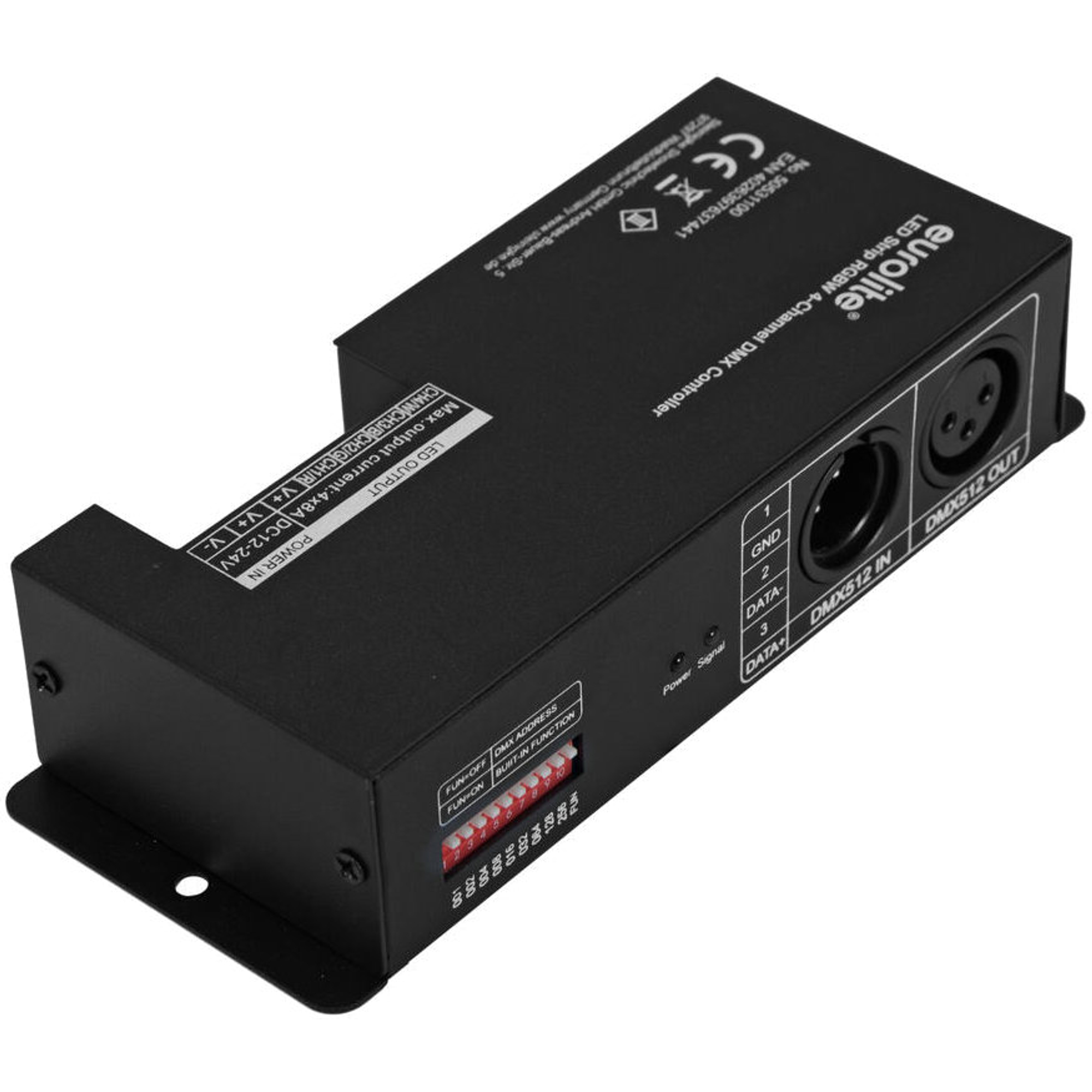

- 1 x Eurolite LED Strip RGBW 4-Channel DMX Controller
Specification
- Product number 00117065
- Colour Black
