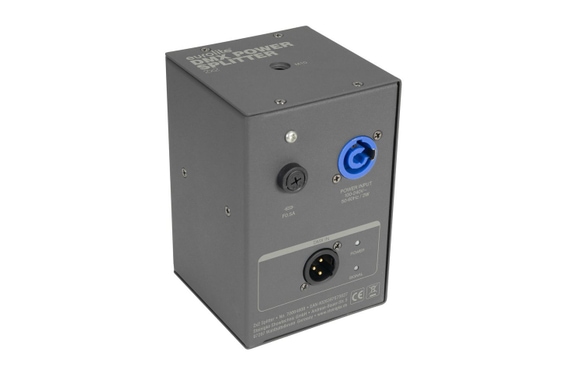

Eurolite DMX Power Splitter 2x2

Dual Power & DMX Splitter For Truss Mounting!

Reliable Power & DMX Splitter
1 P-Con input to 2 outputs, max. 10 A
1 DMX input to 2 outputs
Inputs & outputs are galvanically isolated
LED status indicators for Signal In/Out
Durable metal housing with M10 threaded insert

Eurolite DMX Split 2 Splitter 3/5-Pin

Compact splitter with 3- & 5-pin XLR connectors
LED status indicators
Fixed power cable
Sturdy metal housing with M10 threaded inserts

RRP 54,62 €

43,50€

Eurolite DMX Split 4 Splitter

Distributes one DMX input to 4 DMX outputs
Input and outputs galvanically isolated
Each DMX output with independent driver & status indicators
Input and outputs with internal 500 mA fuse
Switchable termination resistor

RRP 106,98 €

85,89€

Eurolite DMX Split 8X Splitter 3-pin

DMX splitter for distributing a DMX input signal to 8 DMX outputs
Input and output galvanically isolated
Switchable termination resistor
19" rackmount 1U
Each DMX output with an independent driver and status indicator
Passive convection cooling

RRP 117,81 €

Eurolite DMX Split 6X

Splits a DMX input into 6 DMX outputs
Inputs & outputs galvanically isolated
Connections: 3-pin & 5-pin XLR
Each DMX output with independent driver & data LED
Input & outputs with internal 500 mA fuses
19\" rackmount

RRP 177,31 €

Eurolite DMX Split 8X

Splits a single DMX input into 8 DMX outputs
Additional QuickDMX input for wireless DMX reception
Inputs & outputs galvanically isolated
Connections: 3-pin & 5-pin XLR
Each DMX output with independent driver & data LED
Inputs & outputs with internal 500-mA fuse
19" Rackmount

RRP 213,01 €

All prices include VAT

Ready for shipping

Standard Shipping

Delivery time 8 - 10 working days

Eurolite DMX Power Splitter 2x2!

Dual power and DMX splitter for truss mounting.

Quality Accessories Made in Germany!

Features

Reliable Power and DMX Splitter
1 P-Con input to 2 outputs, max. 10 A
1 DMX input to 2 outputs
Inputs and outputs are galvanically isolated
LED status indicators for Signal In/Out
Durable metal housing with M10 threaded insert
Includes power cable

Technical Data

Power supply: 100-240 V AC, 50/60 Hz
Total power rating: 2 W
Output current: Max. 2 x 5 A per channel
Power output: 2 x P-Con (grey), built-in version
DMX input: 3-pin XLR (M)
DMX output: 2 x 3-pin XLR (F) galvanically isolated with independent driver and status indicator
Power connection: P-Con (blue), built-in version; power cable with mains plug
Dimensions (W x D x H): 9 x 10 x 13.6 cm
Weight: 1 kg

Scope of delivery

1 x Eurolite DMX Power Splitter 2x2
1 x power cable

Specification

Product number 00074613
Colour Grey
