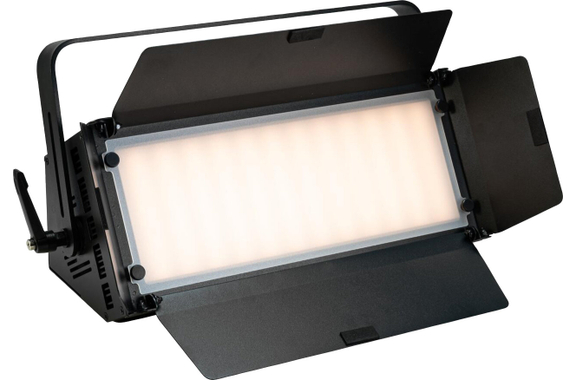

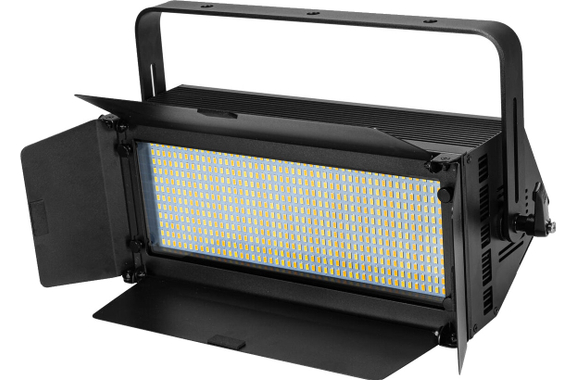

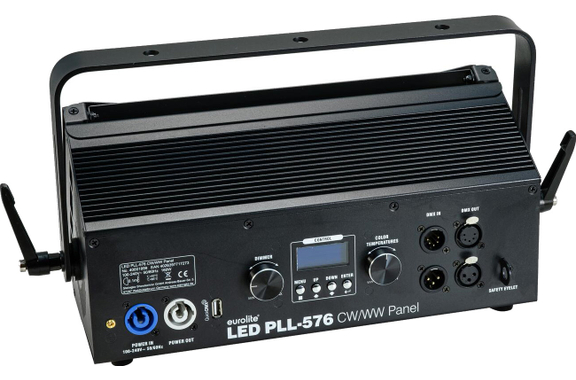

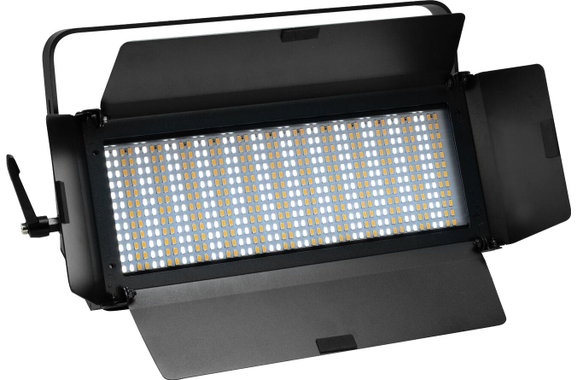

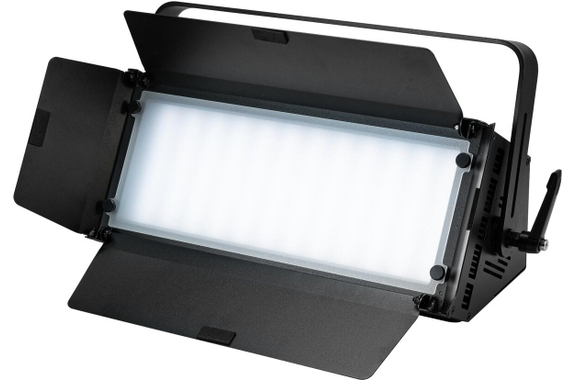

Eurolite LED PLL-576 CWWW Panel - Powerful, Flexible, Professional!
This panel light was developed for anyone who needs reliable, high-quality lighting—whether you’re a videographer, an event technician, or working in theatre. The mix of cool-white and warm-white LEDs provides a natural, adjustable color temperature that can be precisely tuned to any environment. Whether permanently installed or used on the move: with its thoughtful features you’re ready for any challenge.
Features
Highlights
- 576 high-power LEDs (288 cool white, 288 warm white)
- Continuously adjustable color temperature from 3000 K to 6000 K
- DMX-controllable with QuickDMX, CRMX & W-DMX (optional via USB)
- Includes frost filter and 4 barn doors
- Flicker-free light - ideal for video and photo productions
- Very high color rendering index (CRI 93)
- Extremely quiet operation - perfect for noise-sensitive environments
- 120° beam angle for wide-area illumination
Technical Specifications
- Power supply: 100-240 V AC, 50/60 Hz
- Power consumption: 160 W
- IP rating: IP20
- LED type: 288 x 0.5 W CW + 288 x 0.5 W WW (SMD 5730)
- Adjustable color temperature: 3000 K - 6000 K
- CRI: 93 Ra
- Beam angle: 120°
- Illuminance:
- - CW: 1 m = 3752 lx | 3 m = 453 lx | 6 m = 134 lx
- - WW: 1 m = 3664 lx | 3 m = 445 lx | 6 m = 132 lx
- - Both: 1 m = 5667 lx | 3 m = 690 lx | 6 m = 204 lx
- DMX channels: 2-1, 2-2, 3-1, 3-2, 4
- DMX connectors: 3-pin & 5-pin XLR in/out
- Optional wireless modules: QuickDMX, CRMX, W-DMX via USB
- Display: LCD
- Cooling: temperature-controlled fan
- Dimensions: 44 x 19.8 x 22.3 cm
- Weight: 6.0 kg
- Noise class: 1 (very quiet)
- Mounting: mounting bracket, rubber feet
- Housing color: black
- Included: fixture, power cable, frost filter, 4 thumbscrews, manual
- Mounting options: flown, freestanding, on a stand
Scope of delivery
- 1 x Eurolite LED PLL-576 CWWW Panel
- 1 x Power cable
- 1 x Frost filter
- 4 x Thumbscrews
Specification
- Product number 00116692
- Colour spectrum White
- IP rating IP20
- DMX interface Yes
- Colour Black
- Light source power (Watts) 160
- Black light / UV No
