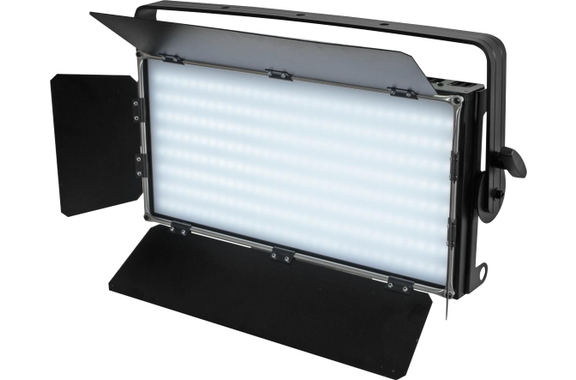

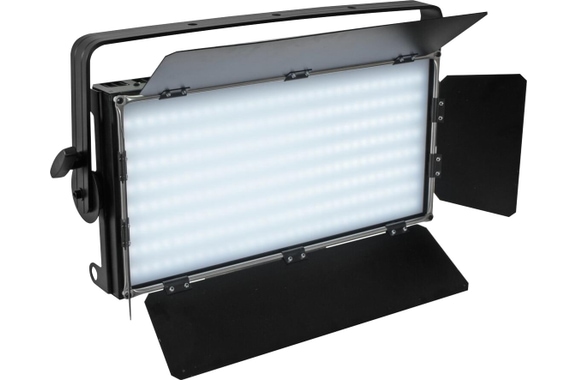

DMX-Controlled RGBW Panel - Power and Precision for Stage, Event & Studio!
Inside, 480 high-quality 4in1-RGBW LEDs (SMD 5050) deliver not only impressive brightness (up to 2696 lx at 1 m) but also excellent color blending—without visible color shadows. Color changes, crossfades and dimming are fully adjustable. In addition, a powerful strobe effect reaches up to 19 Hz. The fixture is controlled via DMX (selectable 4 or 6 channels), in Master/Slave chains or stand-alone mode. For a quick start, programs for Light'J, Light Captain and EASY SHOW 1-3 are preinstalled.
Features
Highlights
- 480 SMD 5050 4in1 QCL RGBW LEDs for intense, even color mixing
- Flicker-free light - ideal for video & photo use
- Continuously dimmable, with color crossfades and strobe effect
- Passive cooling - completely silent operation
- DMX-controllable, Master/Slave & Stand-Alone operation
- 120° beam angle for wide coverage
- Robust metal housing with mounting bracket & carrying handle
- Four barn doors & frost filter for precise light shaping
- Power linking - up to 8 units linkable
Technical Specifications
- Voltage: 100–240 V AC, 50/60 Hz
- Power Consumption: 205 W
- LED Type: 480 x SMD 5050 4in1 QCL RGBW
- Beam Angle: 120°
- Luminous Flux: 17,103 lm
- Lifetime: approx. 50,000 h
- Control: DMX (4/6 channels), stand-alone, Master/Slave
- Flash Rate: 1–19 Hz
- Housing: metal/aluminum die-cast, black
- Cooling: passive (silent)
- Dimensions: 64 x 13 x 33.5 cm
- Weight: 12.6 kg
- Ingress Protection: IP20
- Energy Efficiency Class: F
- Included: fixture, power cable, plug, manual
Scope of delivery
- 1 x Eurolite LED PLL-480 QCL Panel
- 1 x power cable
- 1 x plug
Specification
- Product number 00116689
- Colour spectrum RGBW
- IP rating IP20
- DMX interface Yes
- Colour Black
- Light source power (Watts) 205
- Black light / UV No
