Eurolite LED Mega Strobe 812 Panel

Versatile 3in1 LED Strobe Panel for Professional Light Shows!

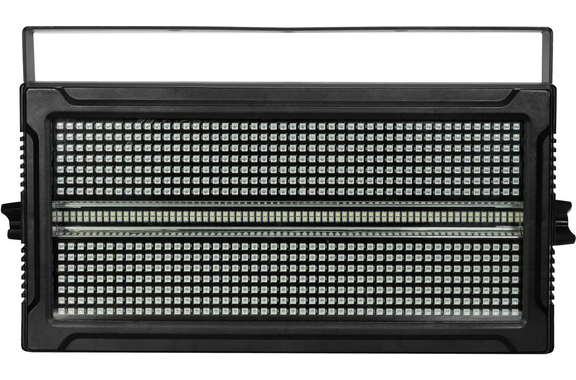

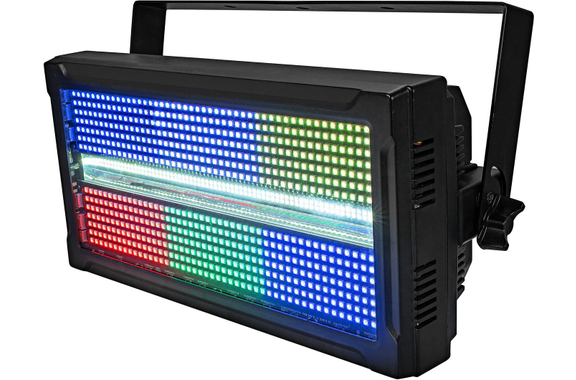

The Eurolite LED Mega Strobe 812 Panel is a technically versatile 3in1 LED effect unit built for professional use in clubs, stages, events, rental and mobile show setups. The system combines classic strobe, blinder and wash effects in a compact panel, covering multiple effect needs with a single device. For the light source Eurolite uses 140 powerful cool-white SMD 3535 LEDs at 3 W each and 672 RGB SMD 5050 LEDs at 0.2 W each. The result is a potent mix of hard, punchy white flashes and broad, colorful wash and blinder effects. The homogeneous RGB color mixing expands the device's range significantly, making it interesting not only for strobe accents but also for dynamic color fields and crowd-pleasing show images.

Powerful LED Configuration

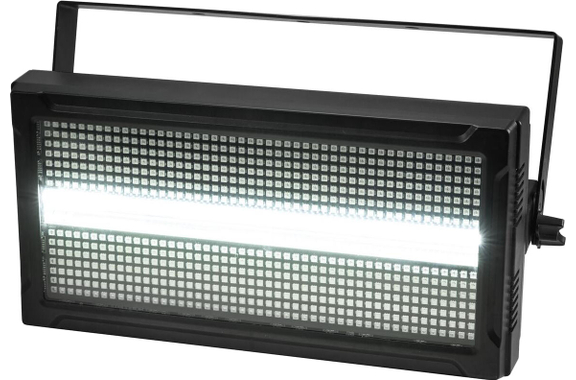

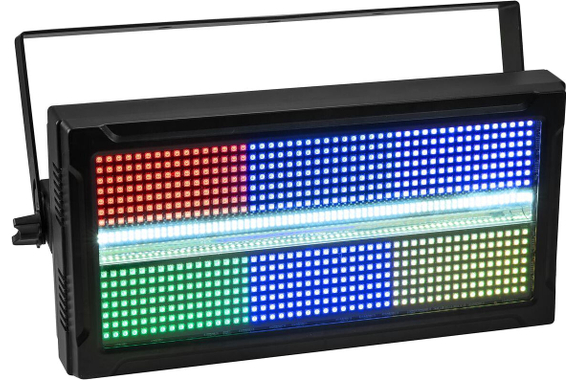

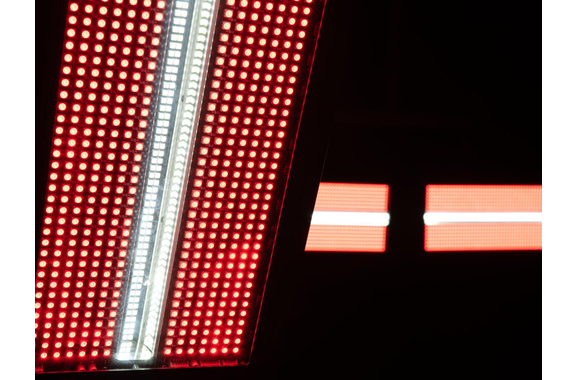

In the white-effect area the panel runs on 140 cool-white 3 W LEDs designed for intense strobe pulses and powerful blinder moments. This is complemented by 672 RGB LEDs with homogeneous color mixing, enabling colored wash areas and combined effect images. Especially in live use this separation is a clear advantage, because hard white bursts and colored fields can be used side-by-side or dramaturgically coordinated. That makes the unit ideal for lighting designers who want both classic strobe effects and modern, colorful surface and eye-candy effects from a single panel.

Precise Effect Control With Multiple DMX Modes

For integration into professional lighting setups the LED Mega Strobe 812 Panel offers several DMX modes with 6, 17, 20, 21, 298 or 310 channels. This allows very different operating approaches depending on the application: from compact, fast basic control to significantly more detailed access to individual effect parameters. In addition there are stand-alone and Master/Slave modes, so the panel can be used both in complex DMX installations and in smaller autonomous setups. Particularly relevant in practice are the variable flash rate from 1 to 30 Hz, an electronic dimmer, stepless RGB color mixing, selectable dimmer curves as well as strobe special effects and movement macros. That gives you far more creative control than simple strobes.

Show Programs, Macros and Live-Ready Performance

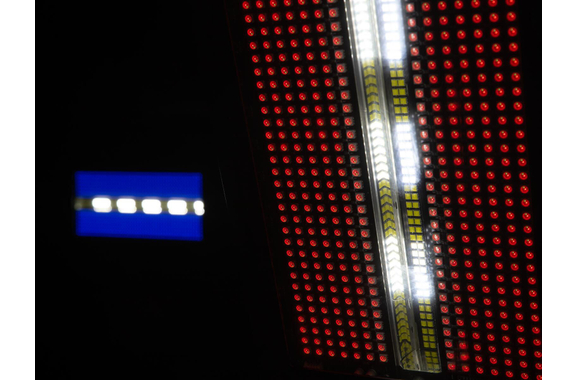

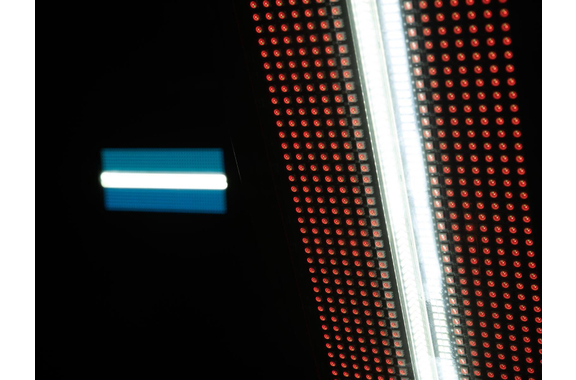

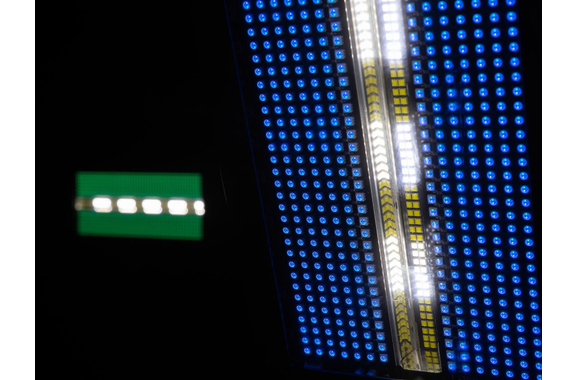

With 37 built-in show programs the unit is ready for use quickly even when no external lighting desk is available or a setup needs to be assembled fast. The programs run at variable speeds and suit changing show dynamics from subtle surfaces to aggressive strobe sequences. In addition there are various segment movements, strobe macros, continuous light sections and a meteor effect. This level of technical depth makes the panel attractive for modern show concepts where not only flash frequency but also motion character, directionality and segmented light images play a role.

Touring and Installation Practicality

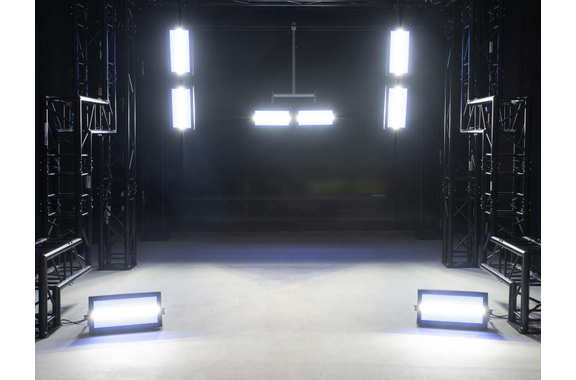

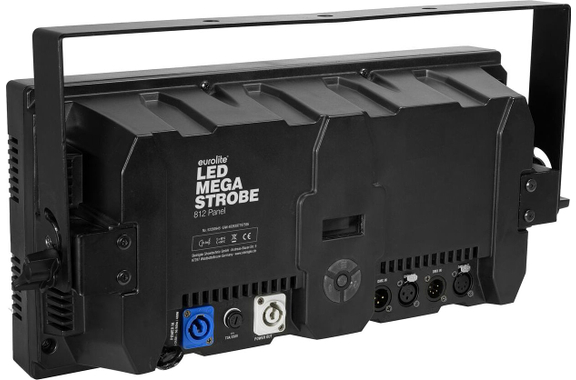

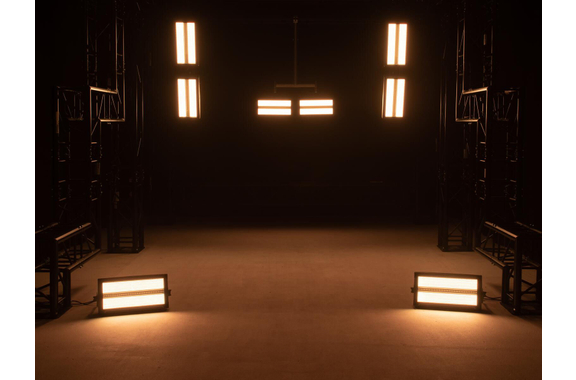

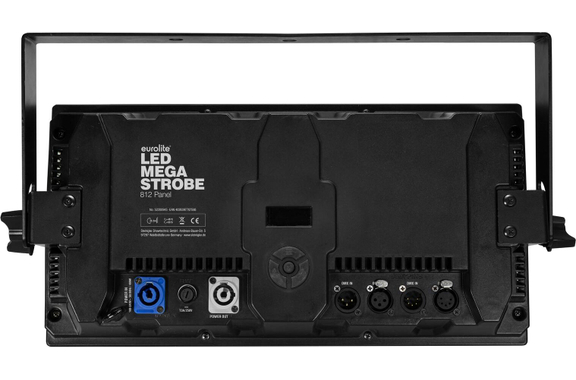

The unit's connections are clearly aimed at professional use. It features P-Con power input and output as well as 3-pin and 5-pin XLR DMX In/Out. The wide 120° beam angle supports flat, even illumination and makes the panel especially attractive for stage backgrounds, audience blinders, set surfaces and effect walls. Additional highlights include an LCD display, fan cooling and very quiet operation. With an IP20 rating the model is designed for indoor use. Mounting brackets and the option to fly or pole-mount the unit ensure flexible integration into a variety of lighting setups.

Get a versatile strobe panel for precise, punchy show effects!
