LED BAR-12 QCL RGB+WW Bar!
The Eurolite LED Bar-12 QCL RGB+WW light bar makes every event and party shine. With many lighting and color options that put every occasion and opportunity in the perfect light.
Powerful LED Performance
Equipped with 12 powerful 7 W QCL high-power 4in1 QCL RGB/WW LEDs (homogeneous color mixing), the effect bar offers a wide range of functions. Choose from continuous color mixing, adjustable color change and crossfade, color temperature settings, dimmer, and strobe settings for your favorite effect. All in one bar with flicker-free projection. The three built-in show programs in auto and music mode further expand the range of ideas.
Easy Operation and Control
The LED Bar-12 QCL also offers several control options for you to choose from: music, master/slave, and DMX mode. The DMX mode additionally offers 2, 4, 5, 6, or 9 channels to select from. But that’s not all. Addressing and settings can also be made via the 4-digit 7-segment LED display. The classic music control via the built-in microphone with adjustable sensitivity is also configurable through the display.
Mounting and Installation
Thanks to the flat housing design and the swiveling mounting bracket, the Eurolite LED effect bar can be mounted hanging or standing, ideal for minimal space requirements. The locking option is located directly on the mounting bracket.
Ideal for Parties, Restaurants, or Mobile DJs!
Features
General
- 12 powerful 7 W high-power 4in1 QCL RGB/WW LEDs (homogeneous color mixing)
- 3 built-in show programs
- Direct color selection for 20 colors
- Device cooling via passive convection cooling
- Flicker-free
- Strobe effect
- With a beam angle of 20°
- With mounting bracket

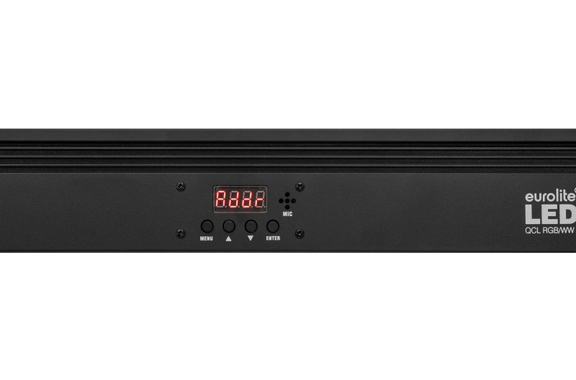

- 4-digit 7-segment LED display
- Variable color temperature 2700 K - 8000 K
- Continuous color mixing; adjustable color change; adjustable color crossfade; electronic dimmer
- Preprogrammed for EASY SHOW 1; Light'J; EASY SHOW 2; EASY SHOW 3
- Controllable via stand-alone; DMX; music control via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Power input and output for easy linking of up to 8 devices
- Suitable for applications such as clubs/dance schools; party basements; mobile DJs/solo entertainers; restaurants, bars, and hotels
- Silent operation
Technical Data
- Power supply: 100-240 V AC, 50/60 Hz
- Total power consumption: 25 W
- Protection rating: IP20
- Protection class: Class I
- Power connection: Power input via cold device (M) built-in version power cable with protective contact plug (included)
- Power output: 1 x cold device (W) built-in version
- Fuse: T 1 A replaceable fuse
- Lamp type: LED lamp
- LED: 12 x 7 W high-power 4in1 QCL RGB/WW (homogeneous color mixing)
- Color temperature: 2700K - 8000K adjustable
- Flash rate: 0 - 20 Hz
- DMX channels: 2; 4; 5; 6; 9
- DMX input: 3-pin XLR (M) built-in version
- DMX output: 3-pin XLR (W) built-in version
- Cooling: Passive convection cooling
- Control: Stand-alone; DMX; music control via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Preprogrammed for: EASY SHOW 1; Light'J; EASY SHOW 2; EASY SHOW 3
- Beam angle: 20°
- Beam angle (1/2 peak): 20°
- Beam angle (1/10 peak): 33°
- Housing color: Black
- Mounting system: 2x mounting brackets
- Display type: 4-digit 7-segment LED display
- Dimensions (L x W x H): 1.06 x 8.85 x 10.90 cm
- Weight: 2.68 kg
Scope of delivery
- 1 x LED BAR-12 QCL RGB+WW Bar
Specification
- Product number 00102816
- Black light / UV No
- DMX interface Yes
- Colour spectrum RGBW
- IP rating IP20
- Light source power (Watts) 25
- Colour Black
