Flexible Multicore System!
Need a 4-channel multicore of any length quickly? No problem! The NetCore system from Pronomic transmits both analog and digital signals through a thin network cable.
Ingenious Technology

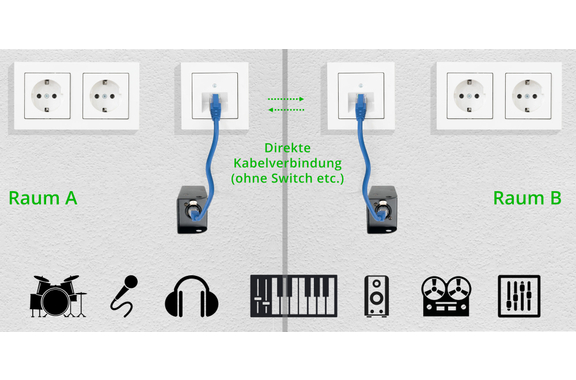

A Cat cable contains 4 pairs of wires – so 4 balanced audio signals can be carried in a single thin cable. The cable shielding acts as signal ground, so operation is only possible with shielded network cables. Since the NetCore system works with conventional network cables, using an existing building network is also possible, for example to route signals from one room to another. The prerequisite is direct wiring of the sockets – no switch or similar device may be in between.
Freely Combinable
The NetCore system includes several stage boxes, rack units, and whips, each component can be connected to any other. It doesn’t get more flexible than this.

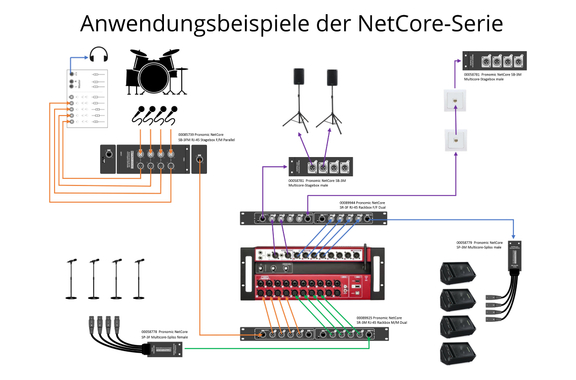

Applications
The uses for a NetCore line are very diverse, for example:
- From the drum kit to the mixing console
- From the mixing console to the monitors
- As a submulticore for keyboards to the mixing console
- From the DMX controller to the lighting effects (4 DMX lines simultaneously)
You can’t lay a multicore more elegantly and slimly. To avoid possible interference noise, we recommend using a NetCore line exclusively for either analog OR digital signals.
Simple, Practical, Cost-Effective!
Features

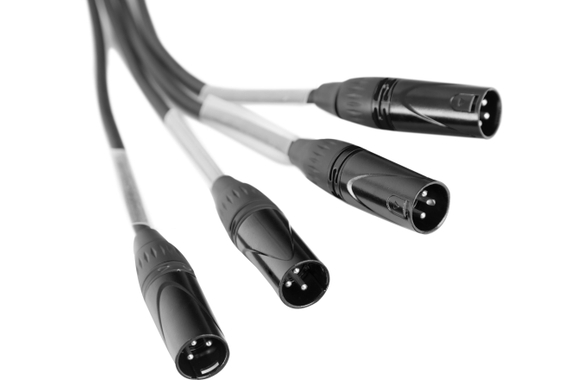

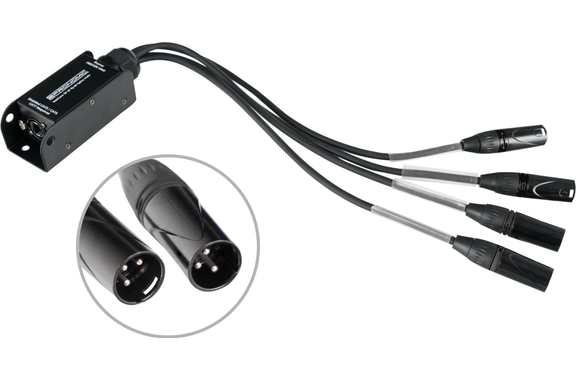

- Whip with 4 XLR connectors (male)

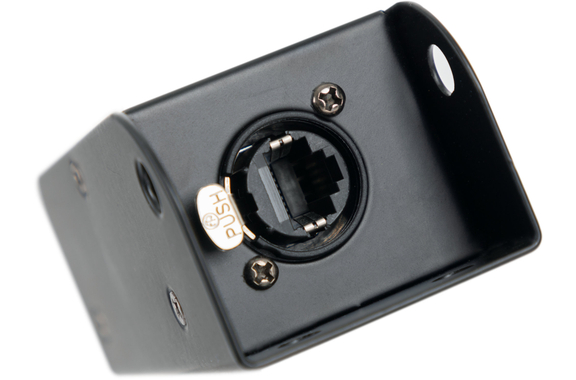

- RJ45 etherCON socket
- Straightforward multicore solution

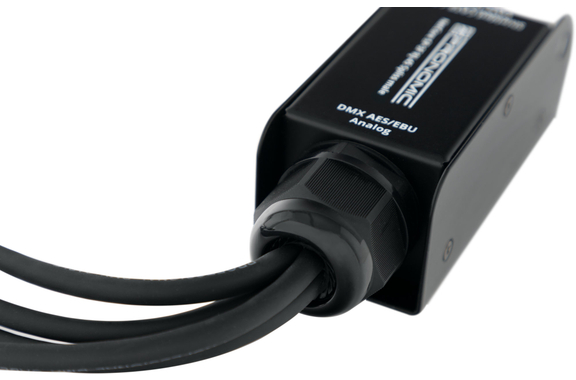

- For transmitting analog or digital (DMX, AES/EBU) signals via network cable
- System components freely combinable

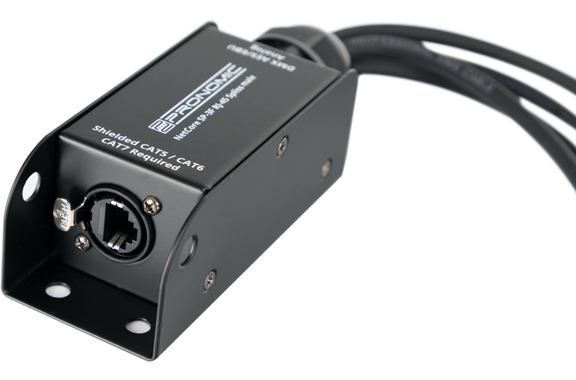

- Possible with shielded cables from Cat5
- 6cm clear shrink tubing on each cable
- Connectors color coded with numbers

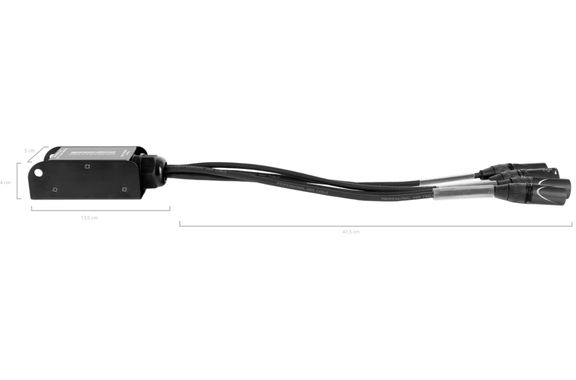

- Cable length: 40 cm
- Housing dimensions: 115 x 54 x 47 mm
- Weight: approx. 440 g
- Material: 1.3 mm steel sheet
- Color: black
Scope of delivery
- 1 x Pronomic NetCore SP-3M
Specification
- Product number 00058779
- Plug 1 etherCON
- Colour Black
- Number of channels 4
- balanced Yes
- Type Passive
- Plug 2 XLR 3-pin male
- Length (meters) 0
Reviews
| 5 Stars |
|
10 |
| 4 Stars |
|
0 |
| 3 Stars |
|
0 |
| 2 Stars |
|
0 |
| 1 Star |
|
0 |
A verification of the ratings has taken place as follows: Only customers who are registered in our online store and have actually purchased the product from us can submit a rating for the item in the customer account.
This rating has been translated automatically. Original language
Variant Pronomic NetCore SR-3FM Multicore Rackbox F/M Parallel
This rating has been translated automatically. Original language
Variant Pronomic NetCore SP-3F Multicore-Spliss female
This rating has been translated automatically. Original language
So far everything has been solved with patchbays and 8-way jack cable whips. Takes up space in the rack, is prone to errors (once two plugs get mixed up and you have to search), weighs.
With transmission via Net Core, it is compact, lighter and foolproof with a network cable.
Workmanship is good. Sockets grip properly. The workmanship makes a high-quality and solid impression. A clear recommendation to buy!
I will now gradually start retrofitting exactly this product in the other racks and also in the studio. The fact that you can send Phantom over the line is also very practical.
Variant Pronomic NetCore SB-3FM Multicore Stagebox F/M Parallel
This rating has been translated automatically. Original language
Variant Pronomic NetCore SB-3FM Multicore Stagebox F/M Parallel
This rating has been translated automatically. Original language
I can recommend it without hesitation. There is only a polarity change in the NetCore SB-3FM section via CAT cable to 4-whip. But you can also "fix" this with a soldering iron
