Pronomic NetCore SB-3F/SP-3M Set

  • Uncomplicated multicore solution for transmitting analogue or digital (DMX, AES/EBU) signals via network cable
  • System components can be freely combined, with shielded cables from Cat5 possible
  • Material: 1.3 mm steel plate, colour: black

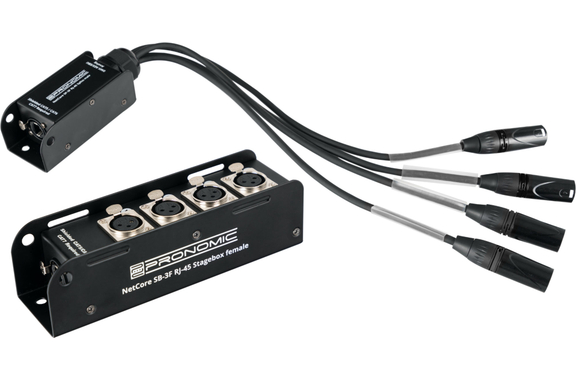

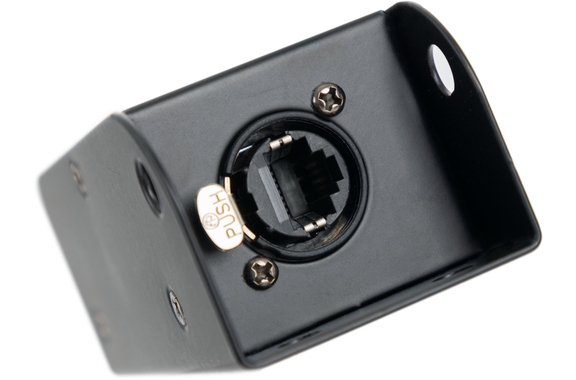

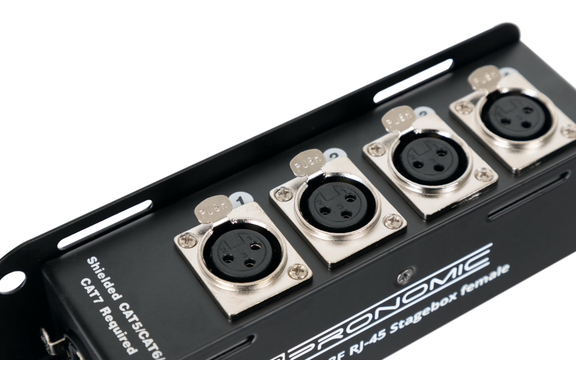

  • Stagebox with 4 XLR sockets (female) to RJ45 etherCON socket, housing dimensions: 180 x 53 x 50 mm

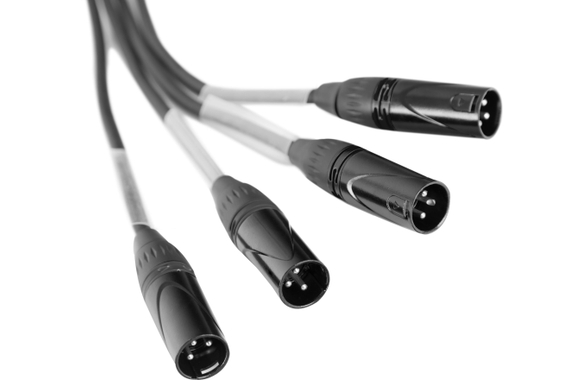

  • Whip with 4 XLR plugs (male) to RJ45 etherCON socket, cable length: 40 cm, housing dimensions: 115 x 54 x 47 mm
Pronomic
Variants (1)
Pronomic NetCore SB-3M/SP-3F Set
Pronomic NetCore SB-3M/SP-3F Set Pronomic NetCore SB-3M/SP-3F Set Pronomic NetCore SB-3M/SP-3F Set
Pronomic NetCore SB-3M/SP-3F Set
  • Uncomplicated multicore solution for transmitting analogue or digital (DMX, AES/EBU) signals via network cable
  • System components can be freely combined, with shielded cables from Cat5 possible
  • Material: 1.3 mm steel plate, colour: black
  • Stagebox with 4 XLR sockets (female) to RJ45 etherCON socket, housing dimensions: 180 x 53 x 50 mm
  • Whip with 4 XLR plugs (male) to RJ45 etherCON socket, cable length: 40 cm, housing dimensions: 115 x 54 x 47 mm
46,99
37,40 €
-20,4 %
46,99

Free shipping (DE) inkl. VAT.

In stock - immediately available
Delivery time 2 - 4 days
or
Delivery on Monday, 17.05.2021, if you order within  1 Days 7 Hrs. 52 Min. with Express delivery.
Product number: 00065090

Flexible multicore system!

Need a 4-channel multicore of any length in a hurry? No problem! The Pronomic's NetCore system sends both analogue and digital signals through a thin network cable.

Ingenious technology
There are 4 pairs of wires in a Cat cable - so 4 balanced audio signals can also be carried in a single thin cable.The shielding of the cable acts as signal ground, so operation is only possible with shielded network cables.

Can be freely combined
The NetCore system includes two stageboxes and two whips, each of which can be connected to each other. It doesn't get more flexible than this.

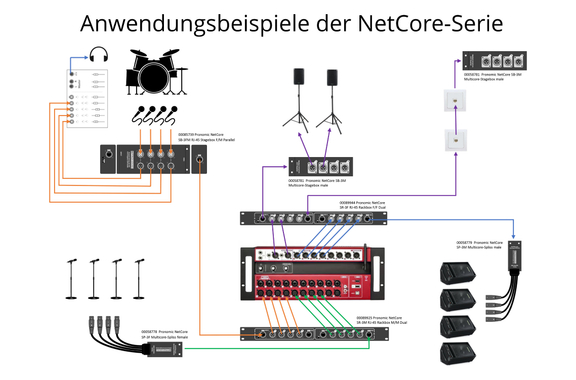

Application
The possible applications of a NetCore line are very diverse, for example:

  • From the drums to the mixer
  • From the mixer to the monitors
  • As submulticore for keyboards to mixing desk
  • From DMX controller to lighting effects (4 DMX lines simultaneously)

You can't lay a multicore more elegantly and slenderly. To avoid possible noise interference, we recommend using a NetCore line only completely for analogue OR digital signals.

Simple, practical, cost-effective!

Specification

Plug 1 XLR 3-pin
Guitar cable No
Colour Black
symmetrical Yes
Multicore Yes
Plug 2 XLR 3-pin
Microphone cable No

Reviews

5.0/5.0
Based On 6 ratings
Show all reviews
5 Stars
6
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
That's really great
Review from Gert on 16.12.2020
This rating has been translated automatically. Original language flag from
 verified purchase
I have also ordered the other resolutions. Very flexible and really good workmanship for the price.
Super set - also the other way round
Review from Thomas on 12.12.2020
This rating has been translated automatically. Original language flag from
 verified purchase

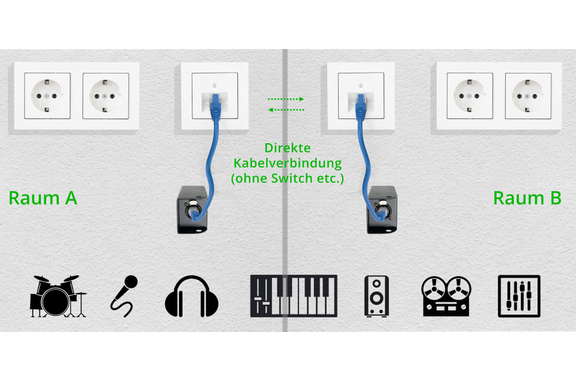

A really very flexible set. Potential has for me especially the possibility to use it "the other way around". With this set you can quickly and easily establish a network connection, for example to the stage, via four channels of another (large) analog multi core, without having to lay a separate cable. Great for control signals for a digital submixer, other digital peripherals or to connect a digital stagebox. I tested it - it works. Of course, the set is also nice for very discretely routing four signals over a shielded Cat5/6 cable. The overall workmanship is good, sockets and plugs are o.k.. (but here you also have to have the price in mind). Does not take up much space, offers a lot and therefore goes everywhere from now on.
Good & cheap
Review from Peter on 27.11.2020
This rating has been translated automatically. Original language flag from
 verified purchase
Sturdy construction, easy and by changing plugs and or sockets to configure individually. From a male and a female variant I have built with a 6/2er.
Cheaper I have not found it.
Inexpensive alternative to "real" multicore
Review from Frank on 10.10.2020
This rating has been translated automatically. Original language flag from
 verified purchase
simple idea, good implementation. The reference to "only shielded cables" refers to the fact that with phantom power the shield is absolutely needed. I.e., As long as active DI boxes or capacitor mics are not used, unshielded network cable should also do.How robust the housings are, remains to be seen. The whip is identifiable by both color and labeling. Gu, how suitable the plugs are, must also first show, but make a decent impression. Praise: the network connector is listed in ETHERCON.
Andre
Review from andré on 24.12.2019
This rating has been translated automatically. Original language flag from
 verified purchase
Super / Super Product works without fail, we should have purchased earlier.

Questions about product

Geht damit auch 48V-Speisung? Also kann ich Kondensatormikros damit an mein Pult anschließen und Phantomspeisung über das Netzwerkkabel schicken?
Question by Wolff-Dietrich Meyer on 09.05.2020
Answer by Timo Kammerer - Musikhaus Kirstein
Bei diesem Gerät ist das leider nicht möglich.
